Valencia
638.20.415.xxx-AA
Exposed set with shower system
Description
- exposed shower mixer ½”
- 2 ceramic internal upper parts ½"
- discharge ¾”
- concealed S-connections ½" x ¾”
- metal hand shower with anticalc. system and backflow preventer
- metal shower hose 1500 mm, both sides with turning cone
- supply pipe, diverter, wall bracket to connect the exposed shower mixer
- projection 360 - 380 mm
- fitting for handshower adjustable in height and inclination
- rain shower head ½“, ø 240 mm
- 3 mm ultra-thin, full metal body
- with ball joint and anticalcareous system
consisting of:
649.13.844 | Rain shower head ½", ø 240 mm
649.20.210 | Supply pipe
632.13.705 | Shower combination
638.20.210 | Exposed shower mixer ½” for supply pipe
Finishes
chrome
mink
platinum
sunshine
bronze
gold
gold matt
mink matt
satin nickel
polished nickel
sunshine matt
platinum matt
rose gold
rose gold matt
black matt
white matt
Handle options
black crystal
white crystal
metal insert
amethyst
labradorite
aventurine blue
white turquoise
black marble
malachite
palissandro blue

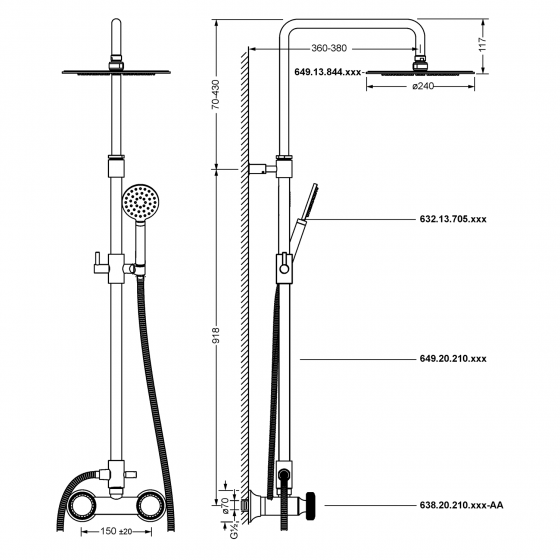

Specification drawing (mm)
