Cronos

63760432

637.60.432.xxx
Wall volume control ¾" or wall diverter ½", assembly set only

Description

  • with design handle
  • must order R1040R rough to complete (Wall volume control ¾")
  • must order R1062BO rough to complete (Wall diverter ½")

this requires:
R1040R | Concealed wall valve ¾", rough only
1 inlet, 1 outlet
¾" NPT inlet, ¾" NPT outlet
back of valve to finished wall 4" min., 4½" max
one extension kit included. Cut to length desired
extension kits can be stacked. Order part # R3-056
flow rate 16 GPM

or
R1062BO | 4-port,3-way dedicated diverter, rough only
solid brass construction
ceramic disc cartridge
½"M NPT inlet | 3 x ½"M NPT outlets
flow is dedicated. May not be split into two outlets at once
CALGreen compliant
flow rate 5 GPM at 60 PSI

Finishes

Cronos - chrome - .000
chrome
Cronos - mink - .095
mink
Cronos - platinum - .065
platinum
Cronos - sunshine - .040
sunshine
Cronos - bronze - .011
bronze
Cronos - gold - .020
gold
Cronos - gold matt - .021
gold matt
Cronos - antique-gold - .025
antique-gold
Cronos - mink matt - .096
mink matt
Cronos - satin nickel - .036
satin nickel
Cronos - polished nickel - .035
polished nickel
Cronos - sunshine matt - .041
sunshine matt
Cronos - platinum matt - .066
platinum matt
Cronos - chrome/gold - .002
chrome/gold
Cronos - mink/gold - .952
mink/gold
Cronos - platinum/gold - .652
platinum/gold
Cronos - rose gold - .022
rose gold
Cronos - rose gold matt - .023
rose gold matt
Cronos - black matt - .092
black matt
Cronos - white matt - .052
white matt

Handle options

Cronos - cross handle - .xxx-1
cross handle
Cronos - lever handle  - .xxx-5
lever handle

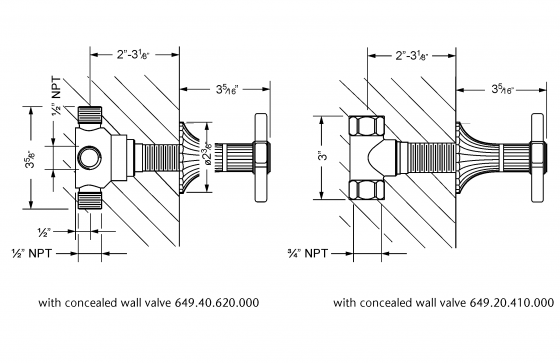

Specification drawing

637.60.432.xxx Specification drawing

Technical Data - Download
