Valencia
638.60.432.xxx-AA
Wall volume control ¾" or wall diverter ½", assembly set only
Description
- with design handle
- must order 649.20.410.000 rough to complete (Wall volume control ¾")
- must order 649.40.620.000 rough to complete (Wall diverter ½")
Required:
649.20.410.000 | Concealed wall valve ¾", rough only
1 inlet, 1 outlet ¾" NPT inlet, ¾" NPT outlet
flow rate 16 GPM at 60 PSI
OR
649.40.620.000 | 4-port,3-way dedicated diverter, rough only
must use with volume control trim
½"M NPT inlet; 3 x ½"M NPT outlets
flow is dedicated. May not be split into two outlets at once
flow rate 5 GPM at 60 PSI
This is required
Finishes
chrome
mink
platinum
sunshine
bronze
gold
gold matt
mink matt
satin nickel
polished nickel
sunshine matt
platinum matt
rose gold
rose gold matt
black matt
white matt
Handle options
black crystal
white crystal
metal insert
amethyst
labradorite
white turquoise
aventurine blue
black marble
malachite
palissandro blue

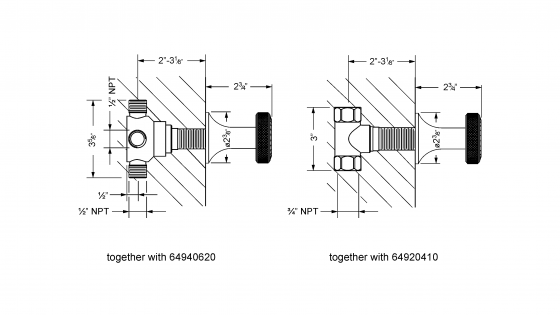

Specification drawing (inch)
